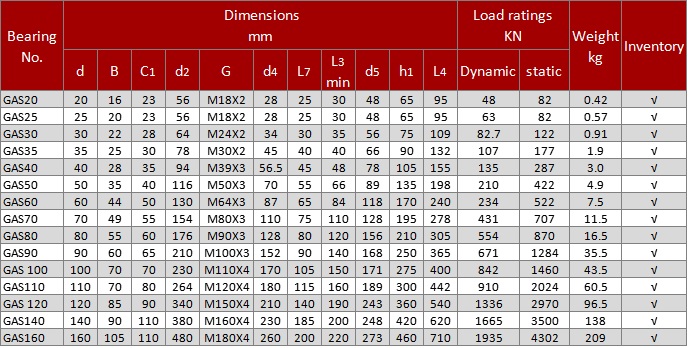

Rod ends with locking slot and female thread

Note：
For left-hand thread, suffix "L" is added to bearing number and thread sign,e.g.GASL30.
Sliding contact surfaces: Steel / Steel

Design and application features:

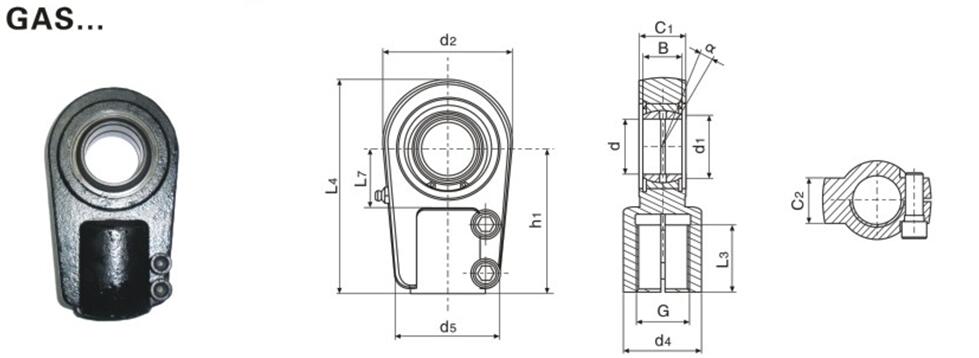

Rod end with locking slot is made up of a rod end a radial spherical plain bearing of series GE...ES, fixed in housing by snap rings, rod end of carbon steel(d≤70) or spheroidal graphite cast iron(d≥80), Thread can be closed because shank is slotted, thread clamping by two hexagon socket screws; Can be lubricated via a nipple.
It has characteristics of large load-capability, easy mounting, dismounting and mechanism simplification.
Model transformation: GAS... = GK...SK.



Maintenance required.with female thread

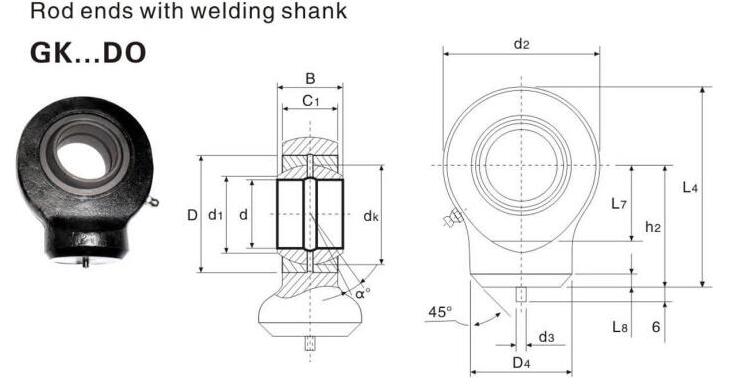

● Rod end housing with weldable base and dowel pin.
● It is made up of a radial spherical plain bearing GE...ES or GE...ES 2RS and rod end housing.
● Rod end housing with a lubricating hole or grease nipple.

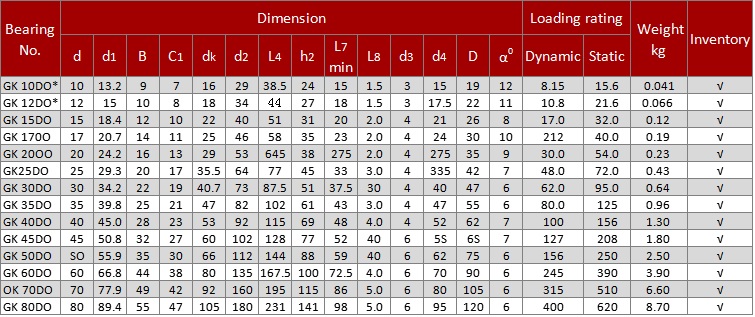

Maintenance required,for welding
● Rod end housing with weldable base.
● It is made up of a radial spherical plain bearing GE...ES or GE...ES 2RS and rod end housing.
● Rod end housing with a lubricating hole or grease nipple.



Sealed design also available. e.g. GF70DO 2RS
